Trailer 4 Wire Plug 32" Inch 4 Pin Flat Wire Extension Male & Female Connector
Standard 32-Inch
$4.99
Skip to product information

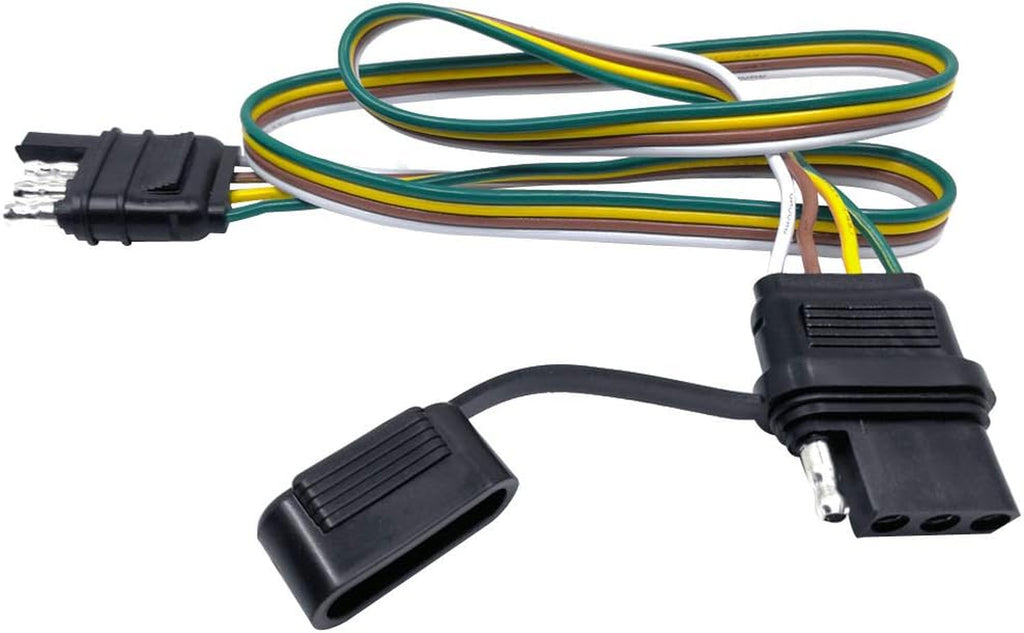

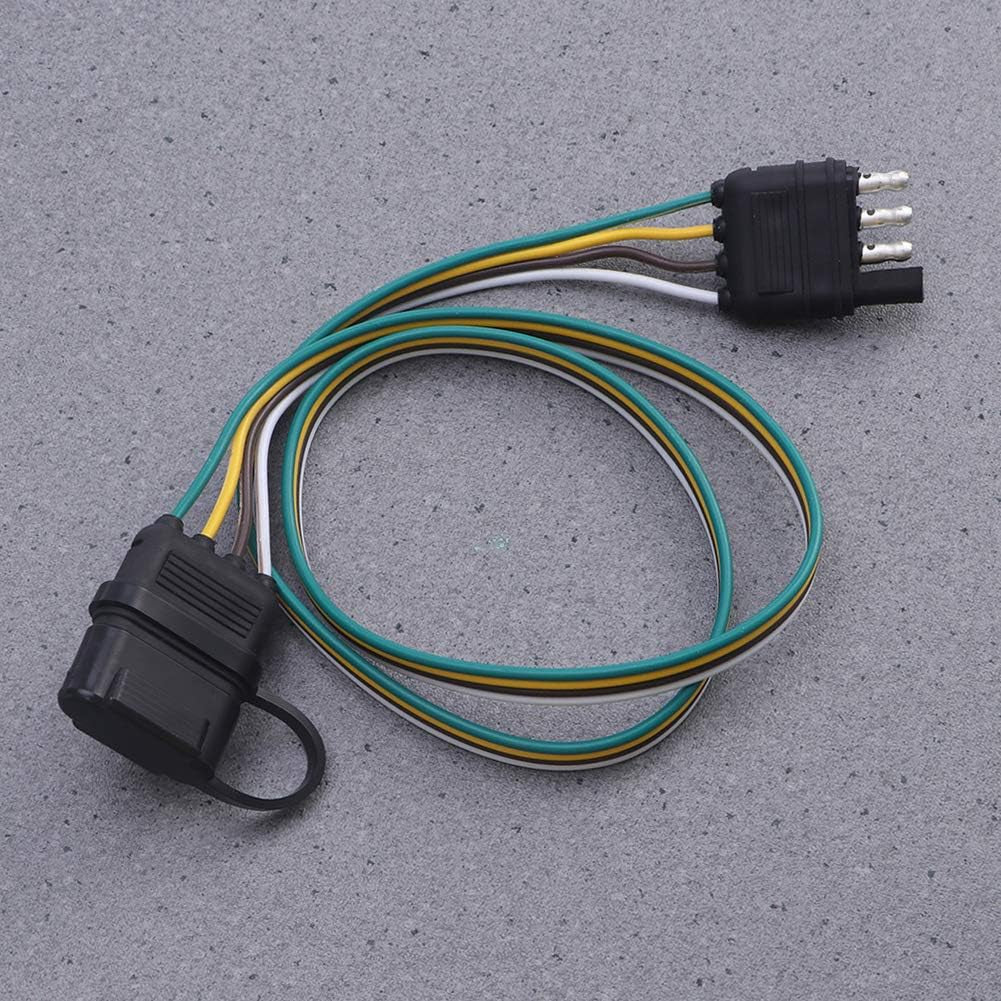

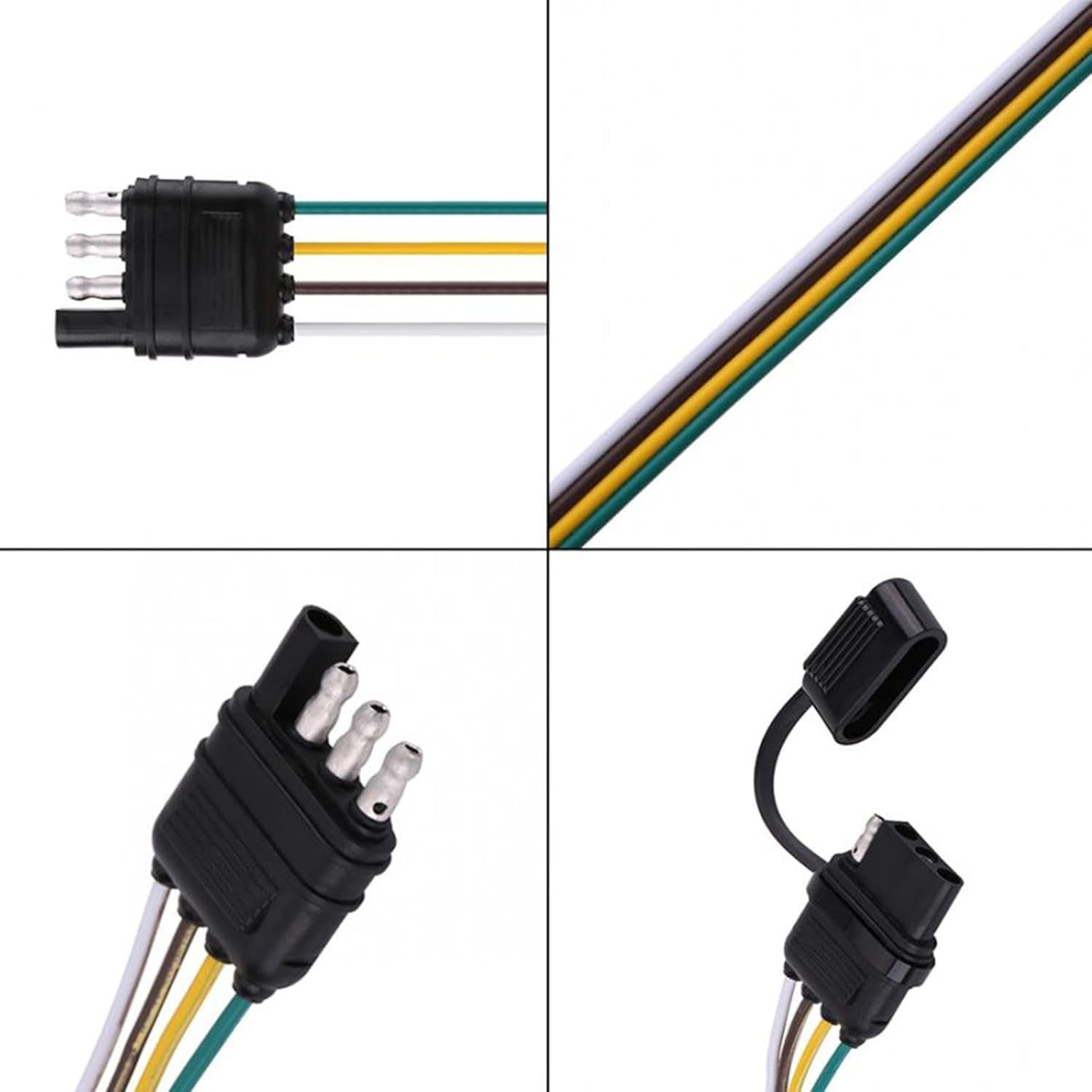

Trailer 4 Wire Plug 32" Inch 4 Pin Flat Wire Extension Male & Female Connector
$4.99
- Trailer 4 wire extension, color coded heavy duty 18 gauge wires, 32 inch
- 4 Pin trailer plug 4 way flat connector with sealing cap on the end keeps the leads dry when not in use
- Constructed with bonded wires for easier installation. 4 way flat output connects tail lights, brake lights and turn signals
- No need to splice wires, simply extend them with this extender into existing wiring to provide connections for both vehicle and trailer
- Fits for all types of trailers including marine boat trailer, horse trailer, ATV trailer, and other cargo utility trailer hitches which have a 4-way plug
Product description

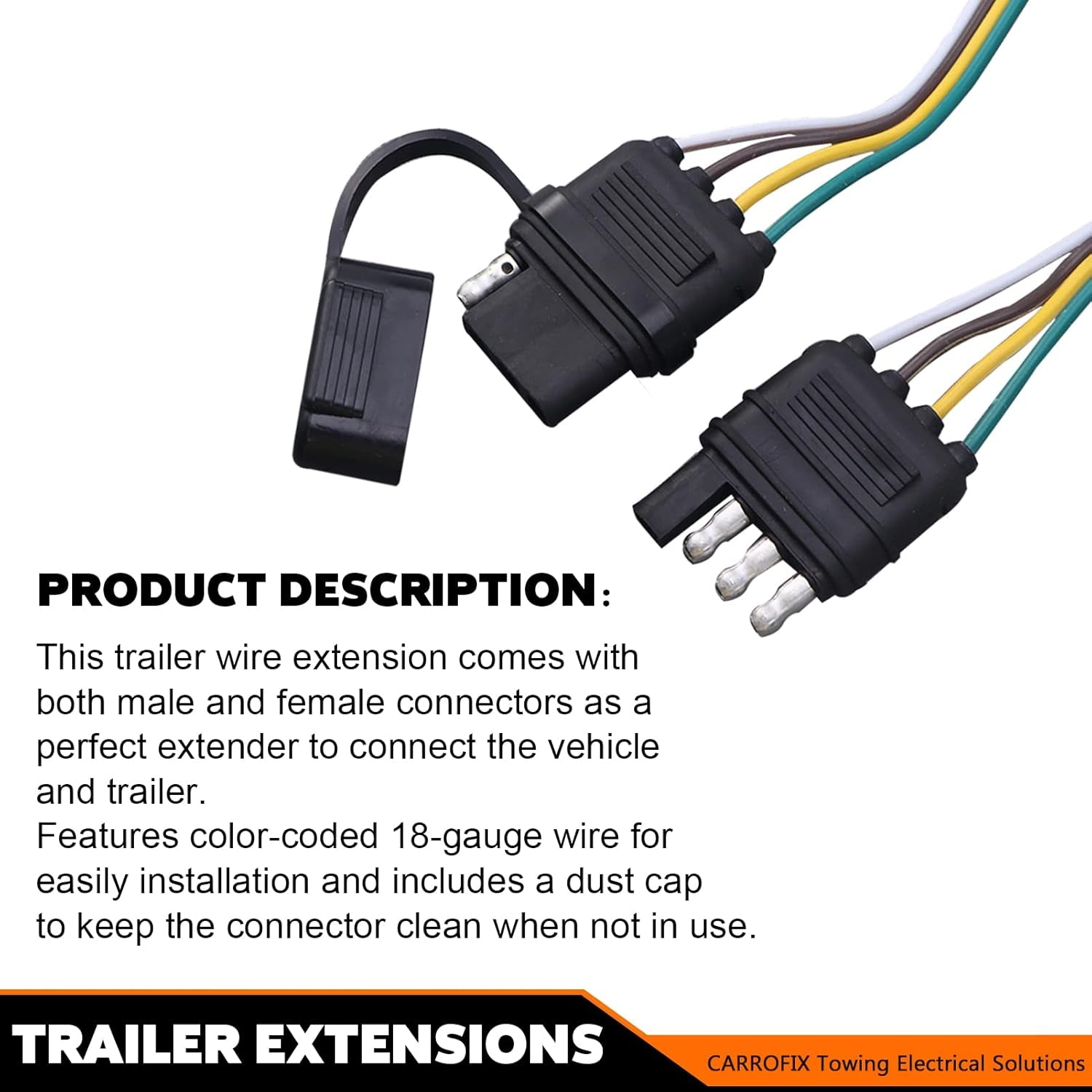

CARROFIX well made 4 wire trailer extension is constructed with durable rubber-molded and color-coded bonded loop wire, it's special designed to supply power for tail lights, turn signals and brake lights as well as a ground connection.

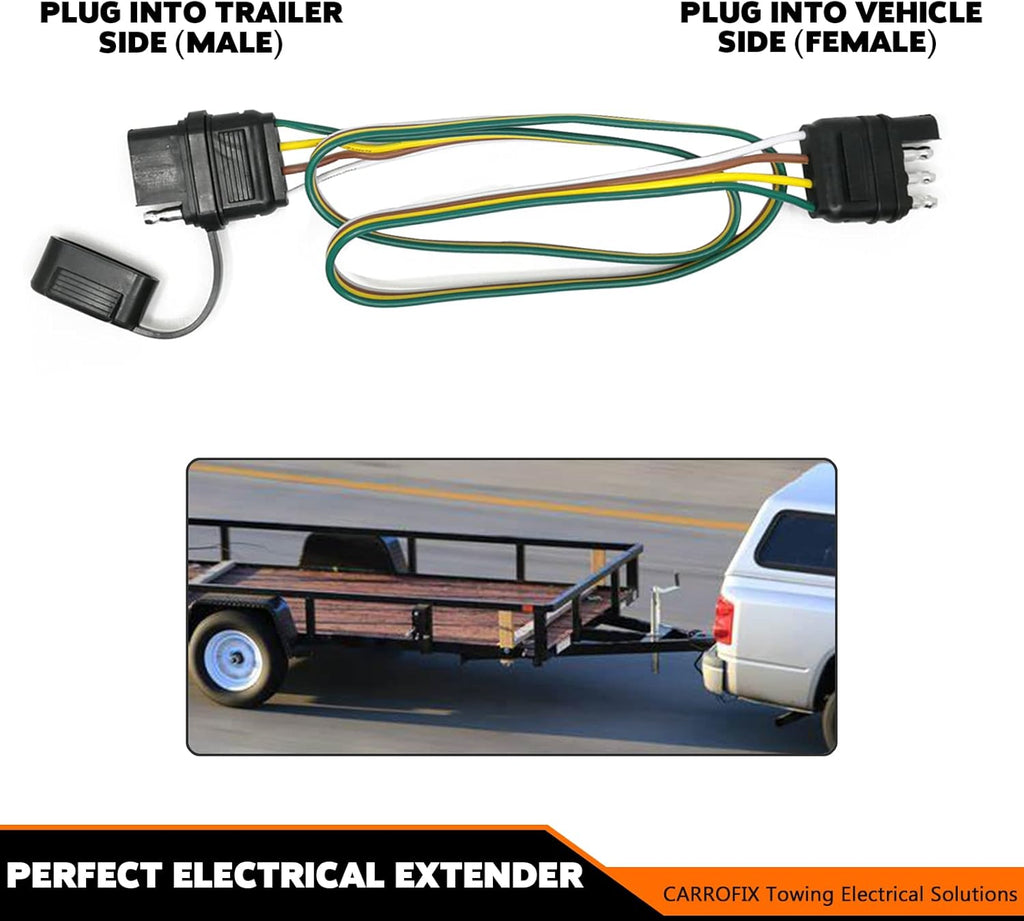

It allows to provide a quick-connect situation for anything on your vehicle where you have to separate it at times by simply unplugging it and plugging it back in when you're ready to go back on.
4-WAY FLAT TRAILER WIRING EXTENSION

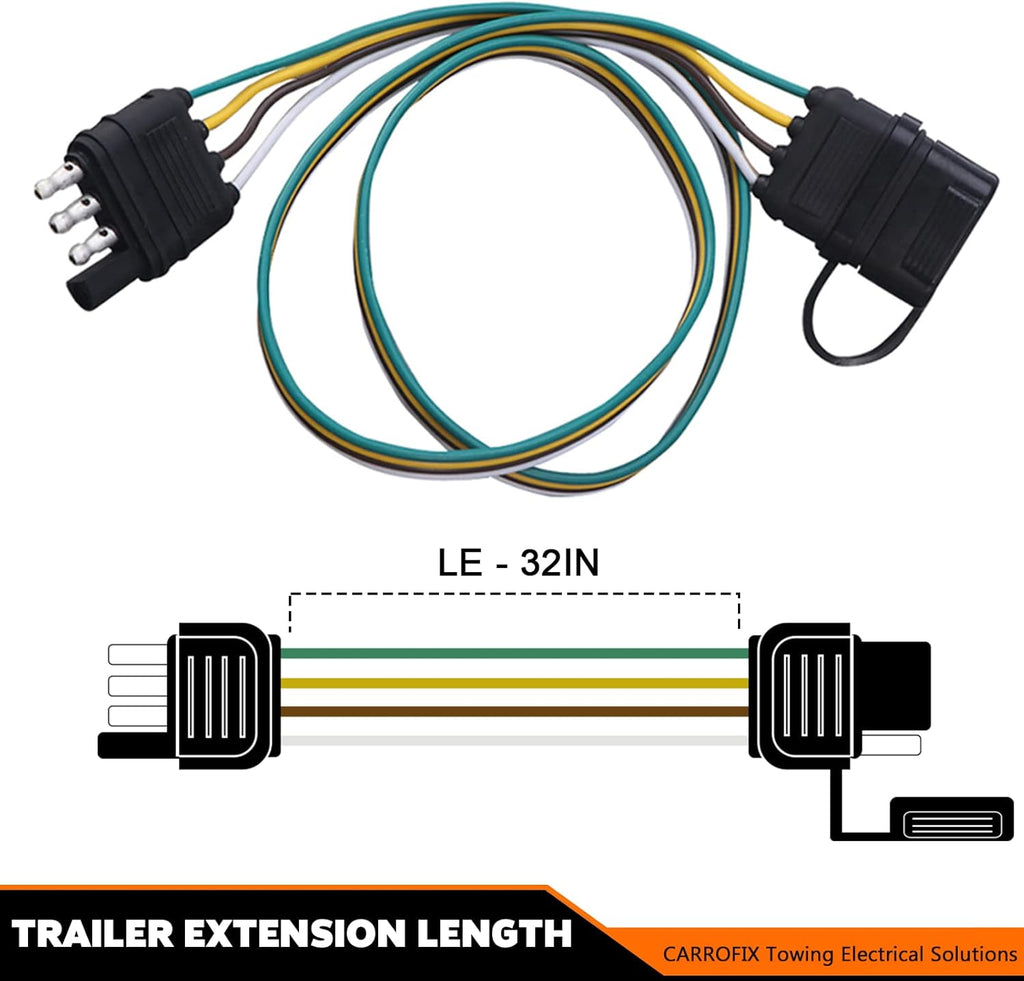

Extends wiring system by 32" long harness for more flexibility

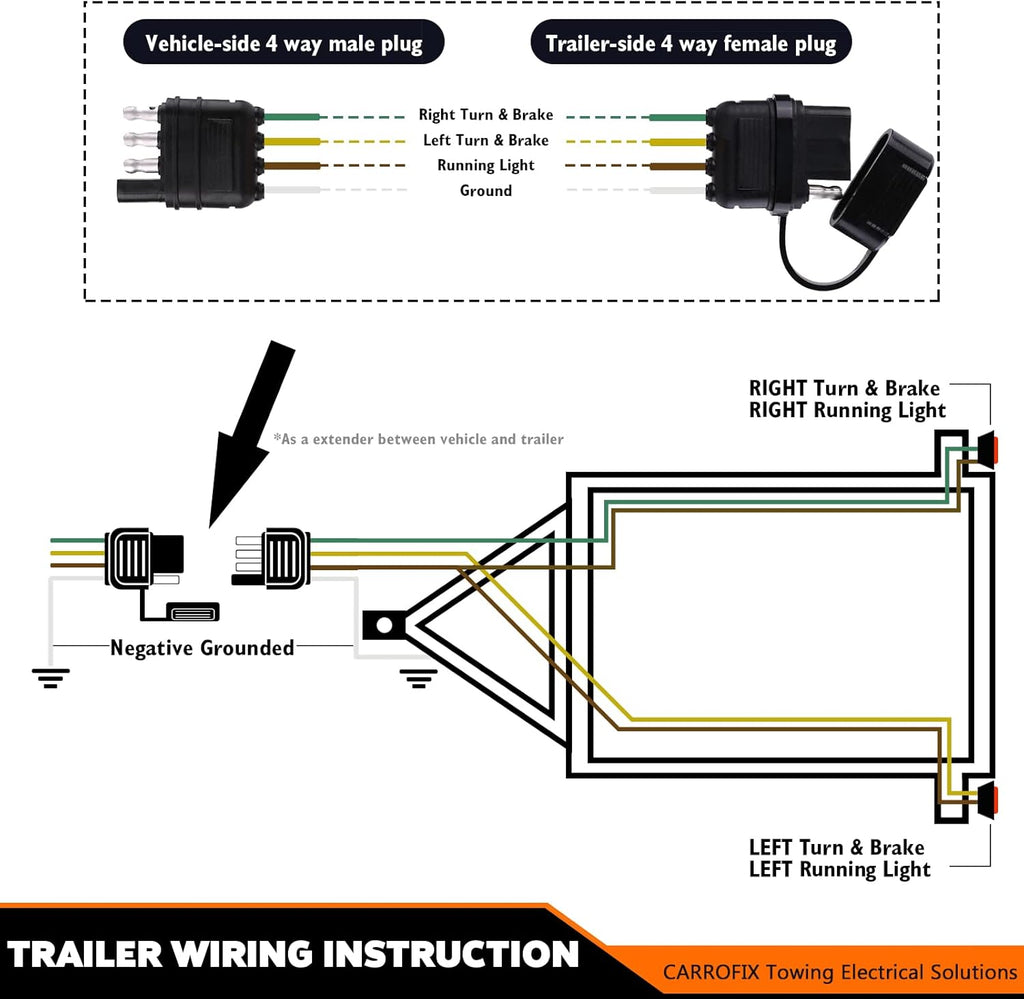

Wire configuration
- PIN1- White wire (ground connection)
- PIN2- Brown wire (tail lights)
- PIN3- Yellow wire (left turn and brake)
- PIN4- Green wire (right turn and brake)
- Package Content: 1 x 4 wire trailer extension
Carrofix towing solutions #
4 Pin Wiring Extension Loop 32-inch Long 4 Way Flat Connector
- Material: Rubber and copper points
- Type: 4 Way 4 pin plug flat 18 gauge - male to female
- Extension Wire Length: Approx. 32 inches
- Net Weight: 2.68oz

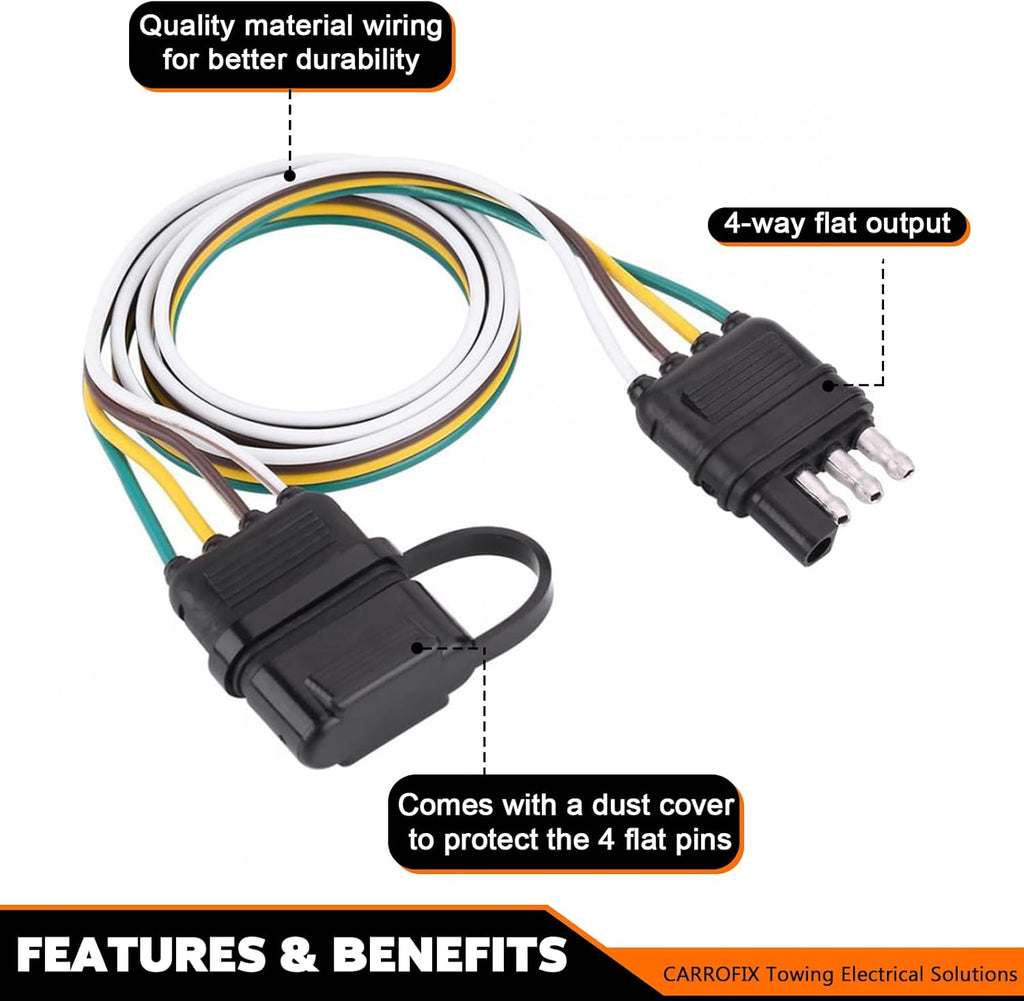

- Trailer wiring extension extends your current 4-way connector
- Double ended 4 way with trailer ends, terminals resist corrosion
- Includes a sealing cap on the end keeps the leads dry when not in use
